Description

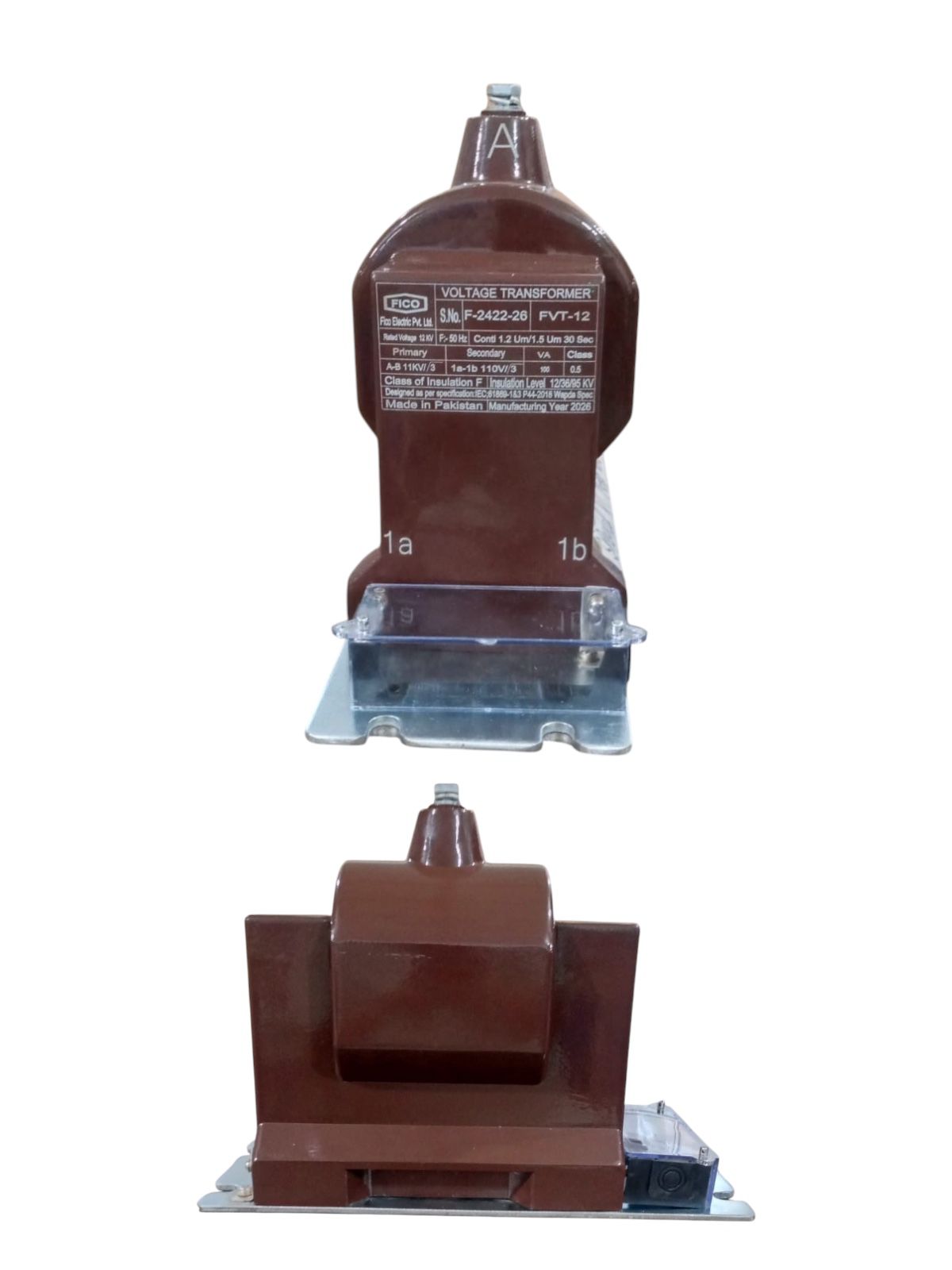

The FICO FVT-12 is a high-reliability, single-phase voltage transformer designed for indoor medium-voltage switchgear. Unlike the fused models, the FVT-12 features a streamlined, block-type construction utilizing high-quality vacuum-cast epoxy resin. It is specifically engineered to provide accurate voltage transformation for metering and protection systems, ensuring precise data for energy billing and system monitoring while maintaining robust electrical isolation.
Key Features & Technical SpecificationsPrecision Metering: Rated at Class 0.5, ensuring high-accuracy voltage measurement essential for revenue-grade metering and sensitive relay protection.Advanced Insulation: Features Class F insulation and a maximum system voltage of 12 kV, with a tested insulation level of 12/36/95 kV to ensure long-term reliability against surges.High Thermal Burden: Provides a substantial 100 VA rated output, capable of supporting multiple secondary instruments without degrading signal quality.Technical Ratings:Primary Voltage: $11000/\sqrt{3}$ VSecondary Voltage: $110/\sqrt{3}$ VRated Frequency: 50 HzStandards Compliance: Fully compliant with IEC 61869-1 & 3 and P44-2018 Wapda Specifications, ensuring it meets rigorous international and local safety standards.Industrial Build: Manufactured in 2026 with a rugged epoxy exterior that resists moisture, dust, and mechanical vibration.Secure Terminal Housing: Equipped with a clear, sealable terminal cover for secondary outlets (1a, 1b) to protect against tampering and accidental contact.
