Description

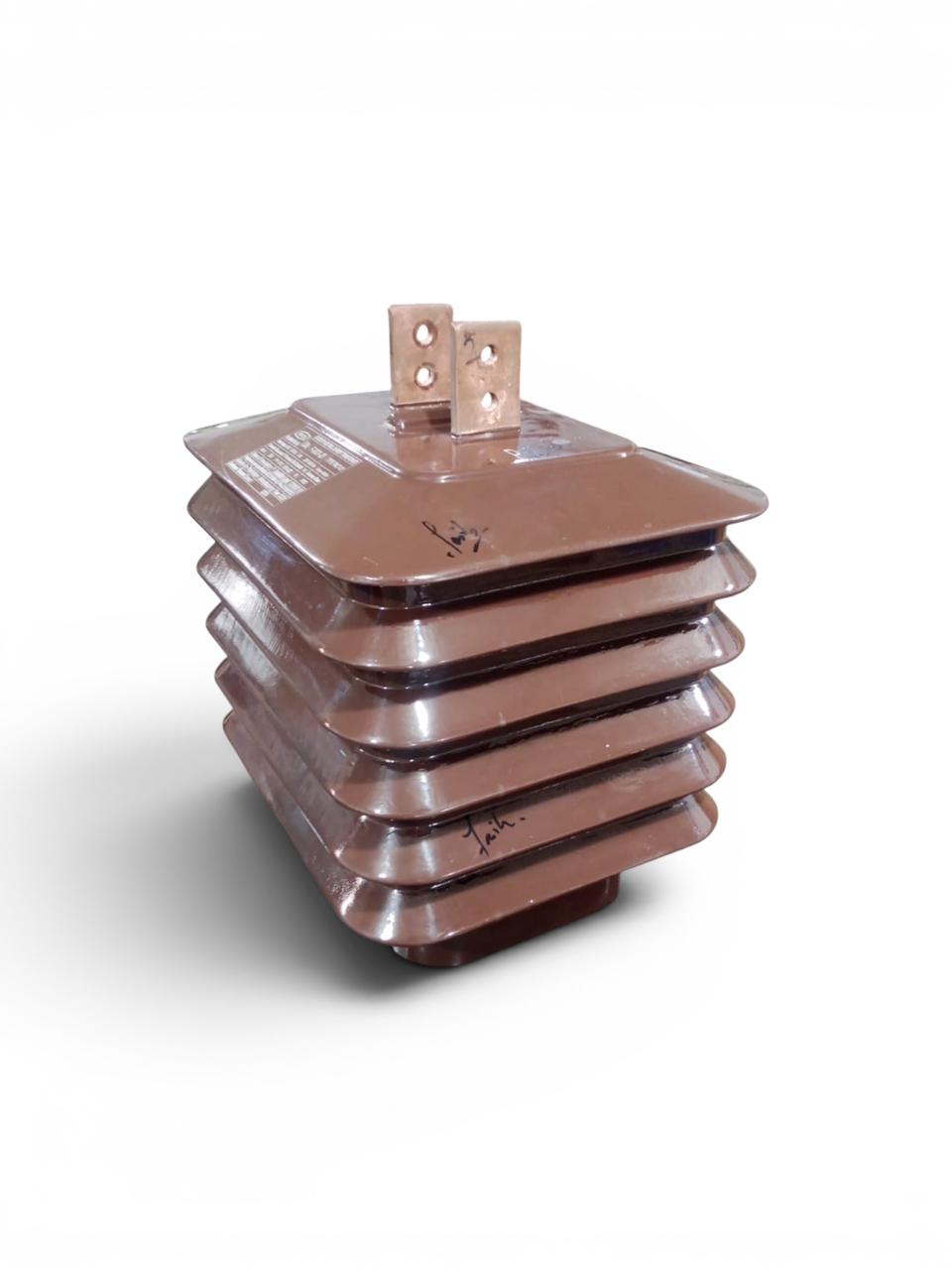

The FICO FNCT-01 is a specialized outdoor current transformer designed specifically for neutral grounding applications in power distribution networks. Unlike standard indoor CTs, the FNCT-01 is engineered with a rugged, weather-resistant epoxy or porcelain-equivalent resin body to withstand harsh environmental conditions, including UV exposure, rain, and temperature fluctuations. It plays a critical role in detecting earth faults and monitoring neutral current flow to ensure the safety of transformers and substations.
Key Features & Technical Specifications
Weatherproof Construction: Encapsulated in high-grade, outdoor-resistant resin that prevents moisture ingress and tracks resistance, ensuring long-term stability in open-air environments.
Protection-Grade Accuracy: Rated at Class 10P10, providing a balanced performance between metering precision and high-saturation limits necessary for detecting fault currents.
High Insulation Reliability:
Rated Voltage (Um): 0.72 kV / 3 kV
Insulation Level: Designed to match the neutral insulation requirements of medium-voltage systems.
Short-Circuit Resilience: Engineered to withstand the thermal and dynamic stresses of short-time neutral faults typical in distribution networks.
Technical Ratings:
Current Ratio: 400/5A
Rated Output (Burden): 15 VA
Frequency: 50 Hz
Primary Connection: Features robust top-mounted primary stud terminals designed for secure connection to the neutral bus or grounding conductor.
Safety & Compliance: Built in accordance with IEC 61869-2 standards, ensuring accurate performance and operator safety during system disturbances.
Durable Mounting: Includes a heavy-duty, corrosion-protected metal base with wide mounting slots for easy installation on transformer tanks or substation structures.
