Description

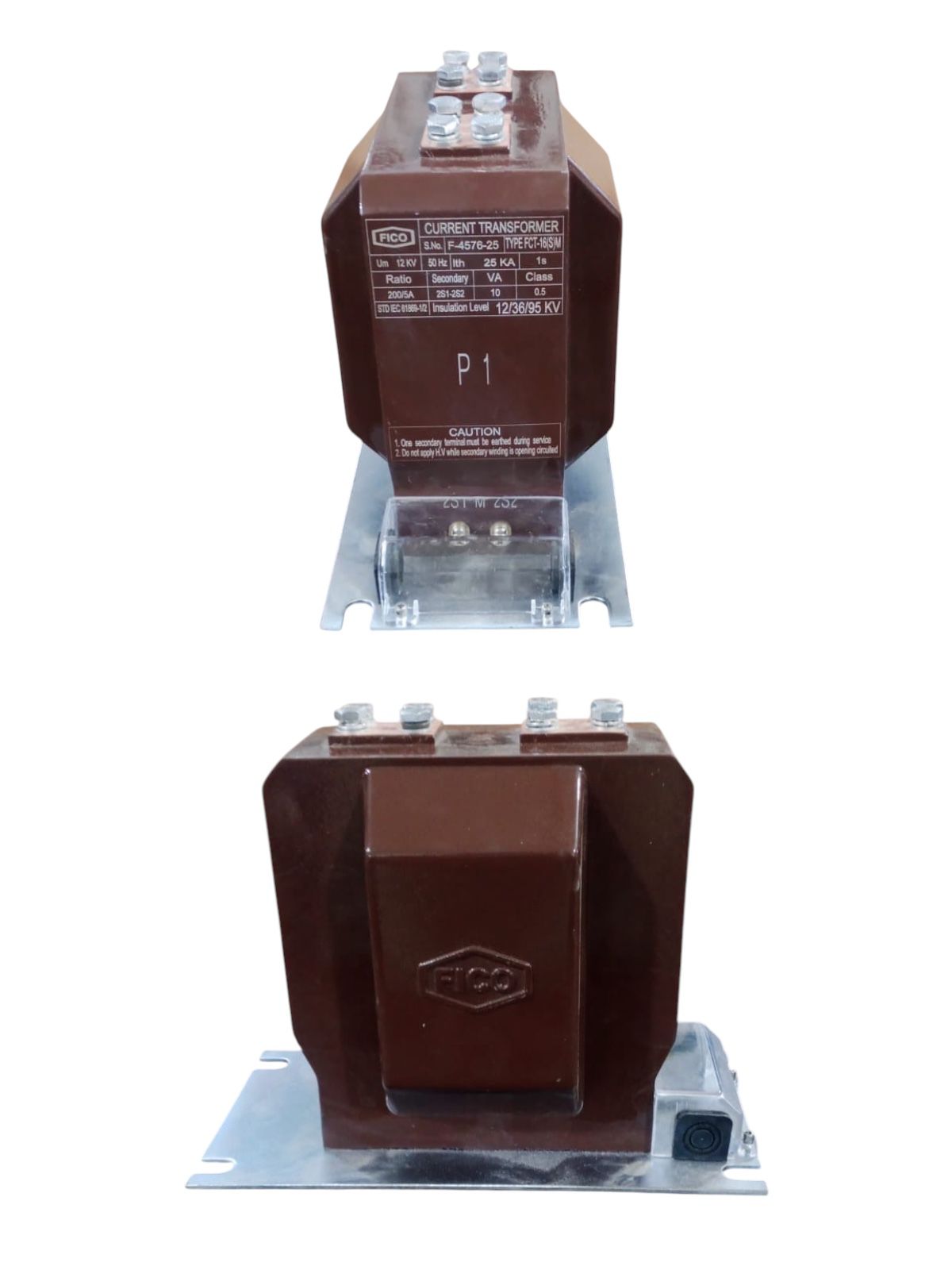

The FICO FCT-16(S)M is a high-precision, single-core indoor current transformer designed for medium-voltage metering applications. Vacuum-cast in high-grade brown epoxy resin, this block-type unit provides superior dielectric strength and mechanical durability, making it an ideal choice for 12kV industrial switchgear and power distribution panels. Its primary interface features top-mounted bolt terminals for secure and stable integration with primary conductors.
Key Features & Technical Specifications
Vacuum-Cast Epoxy Insulation: The core and windings are encapsulated in a non-hygroscopic, void-free resin body that protects against moisture, dust, and environmental stressors.
Metering Accuracy: Specifically rated at Class 0.5, delivering the high level of precision required for critical energy measurement and power management.
High Fault Resilience: Rated for a Short-Time Thermal Current (Ith) of 25 kA for 1 second, providing excellent thermal and mechanical stability during system short-circuits.
Technical Ratings:
Ratio: 200/5A
Rated Output (Burden): 10 VA
Maximum System Voltage (Um): 12 kV
Insulation Level: 12 / 36 / 95 kV
Frequency: 50 Hz
Standards Compliance: Manufactured and tested in full accordance with IEC 61869-1/2 international standards for instrument transformers.
Secure Installation: Mounted on a robust galvanized steel base plate for versatile installation. The secondary terminal block (2S1-2S2) is protected by a clear, transparent cover for easy inspection and enhanced safety.
